Milwaukee-Eight vs Twin Cam: What's the Difference and Which Parts Are Interchangeable?
If you've recently bought a newer Harley-Davidson or you're eyeing a used one, chances are you've come across both the Milwaukee-Eight and Twin Cam engine names. And if you own both bikes — or you're rebuilding, upgrading, or shopping for parts — one question matters above all: can you swap parts between them?
The short answer is: sometimes, but less than you'd think. Here's the full breakdown.
A Tale of Two Engines
The Twin Cam: 1999–2017
The Twin Cam (also called the TC88, TC96, TC103, or TC110 depending on displacement) powered Harley Big Twins for nearly two decades. It was a massive leap forward from the Evolution engine before it, bringing more displacement, dual cam operation (hence the name), and improved reliability.
Twin Cam engines can be identified by their twin cam plate visible on the cam cover side of the engine. They came in several key variants:
- TC88 — 1450cc, used from 1999 to 2006
- TC96 — 1584cc, the workhorse from 2007 to 2011
- TC103 — 1687cc, available from 2012 onwards in touring and some Softail models
- TC110 — 1800cc, a screamin' eagle performance option
Most Twin Cams use a cam chain drive system, though earlier models used gear drive on the inner cam. The cam chest is a known wear point, and aftermarket upgrades for cams, lifters, and oil pumps are among the most popular modifications Twin Cam owners make.

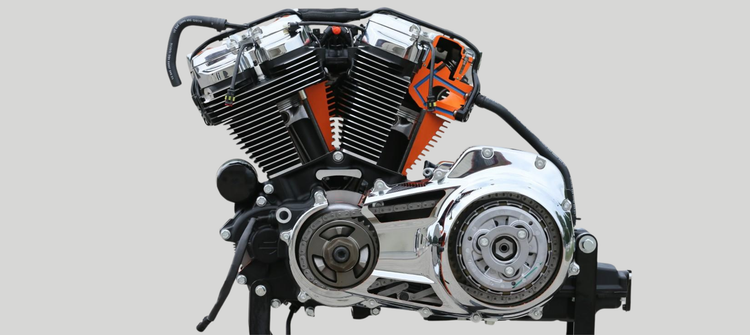

The Milwaukee-Eight: 2017–Present
In 2017, Harley-Davidson introduced the Milwaukee-Eight (M8) — the most significant engine redesign in nearly 20 years. It addressed several longstanding Twin Cam complaints: heat, vibration, and relatively modest airflow through the heads.
Key improvements in the Milwaukee-Eight include:
- Four valves per cylinder (up from two on the Twin Cam), dramatically improving airflow and performance
- Single cam with four lobes — simpler design, fewer moving parts
- Counterbalancer — significantly reduces vibration for rider comfort
- Revised cooling — oil-cooled on most models, with a liquid-cooled option (Milwaukee-Eight 114 and 117 on some touring models)
- Larger displacement from the factory — available in 107ci (1746cc), 114ci (1868cc), 117ci (1923cc), and 131ci (2147cc) variants
The M8 breathes better, runs cooler (in relative terms), and produces more torque lower in the rev range than the Twin Cam it replaced. It's widely regarded as a significant improvement in real-world rideability.
Key Mechanical Differences at a Glance
| Feature | Twin Cam | Milwaukee-Eight |
|---|---|---|
| Valves per cylinder | 2 | 4 |
| Camshaft design | Twin cams | Single cam, 4-lobe |
| Counterbalancer | No (most models) | Yes |
| Factory displacement | 88–110ci | 107–131ci |
| Cooling | Air-cooled | Air/oil or liquid-cooled |
| Years in production | 1999–2017 | 2017–present |
| Throttle body size | 45mm–58mm | 55mm–62mm |
So, Which Parts Are Interchangeable?
This is where it gets important — especially if you're ordering parts and want to make sure you're getting the right fit.
✅ Parts That Often Cross Over
Air cleaners and intake components can sometimes cross over if the throttle body diameter matches. Many popular aftermarket air cleaner kits list fitment across TC and M8 models — check the specific bore size.
Seats, handlebars, foot controls, lighting, mirrors, and most cosmetic parts fit based on the model (Softail, Touring, Dyna) and year, not the engine. A Softail seat that fits a 2015 Heritage will generally fit a 2018 Heritage — same chassis platform, different engine.
Brakes — pads, rotors, and calipers — are largely chassis and wheel-specific. Many carry across the Twin Cam to Milwaukee-Eight transition since Harley retained similar brake architecture on many model lines.
Suspension components — fork internals, springs, rear shocks — are based on the chassis and fork diameter (39mm, 41mm, 49mm), not the engine.
❌ Parts That Do NOT Cross Over
Cam chest components — cams, cam plates, cam bearings, tensioners — are completely different between Twin Cam and Milwaukee-Eight. The twin cam design versus single 4-lobe cam design means nothing is interchangeable here.
Cylinder heads — the move from 2-valve to 4-valve heads means head components, valves, springs, and rocker systems are all unique to each engine family.
Pistons and cylinders — different bore spacing and dimensions. Not interchangeable.
Gasket kits — always engine-family and year specific. A Twin Cam top-end gasket kit will not work on a Milwaukee-Eight.
Oil pumps and related components — different designs entirely.
Ignition and ECM — the Milwaukee-Eight uses a more advanced engine management system. While some tuners work across platforms, the underlying hardware is not shared.
Upgrading? Here's What to Focus On
If you're building or upgrading a Twin Cam:
The cam chest is your biggest performance gain. Aftermarket cams, upgraded lifters, and improved oil pump components can transform a stock TC into a strong performer. The TC's cam tensioner shoes are also a known wear item — worth upgrading proactively if you're going in there anyway.
A free-flowing air cleaner and a tuner (like a FuelPak or aftermarket ECM tune) pair well with exhaust upgrades to unlock more power.
If you're building or upgrading a Milwaukee-Eight:
The M8 breathes better from the factory, so the gains from cam upgrades are even more dramatic. The 4-valve heads respond well to high-lift cams. Pair with a high-flow air cleaner, a performance exhaust, and a proper tune for impressive street performance.
The M8's counterbalancer makes it a smoother ride stock, but some riders remove or adjust it for a more traditional HD feel — another popular mod in the custom community.
Buying Parts: Pro Tips
1. Always know your exact year and model. "Twin Cam Softail" isn't specific enough — a 2003 Softail and a 2016 Softail have different specs that affect parts fitment.
2. Know your engine displacement. TC88, TC96, TC103 all share the Twin Cam family but may have different displacement-specific components.
3. For Milwaukee-Eight, note whether you have a 107, 114, 117, or 131. Higher displacement M8s may have different pistons, cams, and heads.
4. When in doubt, contact us. At Pro Class Customs, we carry parts across the full Twin Cam and Milwaukee-Eight range, and we're here to make sure you get the right part the first time.
The Bottom Line
The Milwaukee-Eight is a genuinely better engine than the Twin Cam in most measurable ways — more airflow, less vibration, better thermal management. But the Twin Cam remains an outstanding platform with decades of aftermarket support and a loyal following.
Parts interchangeability between the two is limited on the engine side, but broader than most people expect on the chassis and cosmetics side. Know your model, know your year, and you'll have no trouble building exactly the bike you want.
